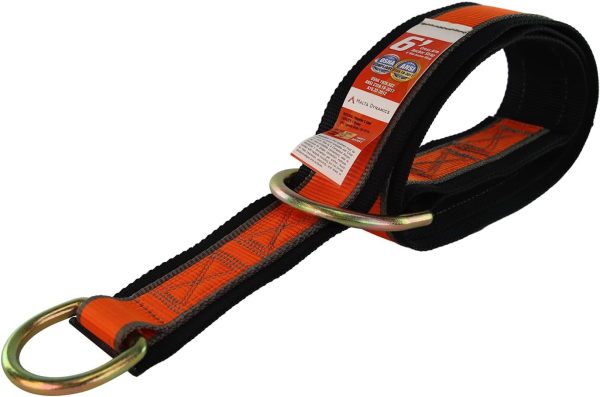

Name: 6' Cross Arm Strap, Fall Protection Beam Strap, D-Ring Safety Strap, Beamer, I-Beam &amp; H-Beam Anchor Strap, Beam Straps Fall Protection, OSHA/ANSI Compliant
SKU: 10809
Availability: InStock

6′ Cross Arm Strap, Fall Protection Beam Strap, D-Ring Safety Strap, Beamer, I-Beam & H-Beam Anchor Strap, Beam Straps Fall Protection, OSHA/ANSI Compliant

Number of Items

size

Clear

INSPECTION PROCEDURE:

Step 1: Webbing/Stitches Grasp webbing in your hands approximately 6 in. (152mm) to 8 in. (203mm) apart. Bend webbing in an inverted “U” as shown. (Illustration 6) The resulting surface tension will allow easier detection of damaged fibers or cuts. Follow this procedure along the entire length of the webbing, inspecting both sides of each strap. Watch for frayed edges, broken fibers, pulled stitches, cuts, burns, and chemical damage.

Step 2: D-Rings Check D-rings for distortion, cracks, breaks, and rough or sharp edges. D-ring should pivot freely. Inspect for any unusual wear, frayed, or cut fibers, or broken stitching of the D-ring attachments. If inspection reveals any defect, inadequate maintenance, or unsafe condition, remove Cross Arm Anchor Strap from service immediately.

OSHA/ANSI CERTIFIED

The Cross Arm Straps have been tested to meet the strict standards of OSHA 1910 & OSHA 1926 Subpart M and are compliant with ANSI Z359.1-2007 & ANSI A10.32-12.

PREMIUM BENEFITS:

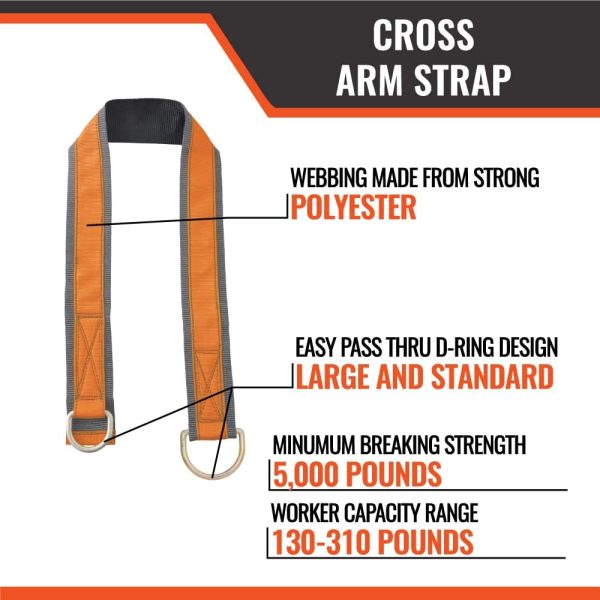

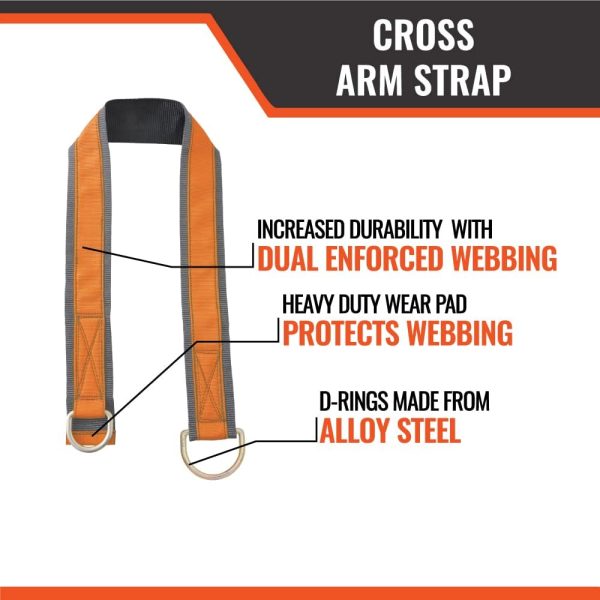

• Increased Durability with Dual Reinforced Webbing and Heavy Duty Stitching

• Equipped with a Heavy Duty Wear Pad to Help Protect the Structural Webbing Against Abrasions and Snags

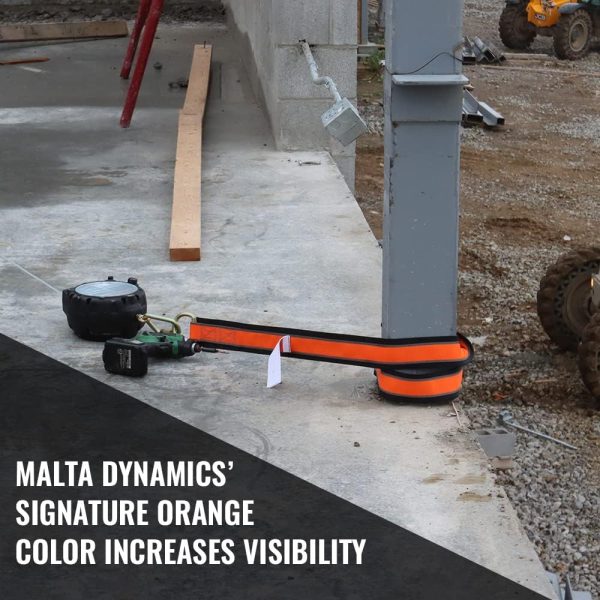

• Signature Orange Color Increases Visibility

• Standard Size D-Ring and Large D-Ring for Easy Pass-thru and Installation

FEATURES:

· Worker Weight Capacity Range: 130-310 lbs. (including all tools and clothing)

· Minimum tensile breaking strength: 5,000 lbs.

· Webbing Material: Polyester

· D-Ring Material: Alloy Steel

· A6350 Weight: 1.2 lbs.

· A6351 Weight: 1.5 lbs.

CERTIFICATIONS:

· OSHA 1910 & OSHA 1926 Subpart M

· ANSI Z359.1-2007 & ANSI A10.32-12
